Badminton Court Dimensions With Size Details

The official badminton court size is 13.4 meters (44 feet) long and 6.1 meters (20 feet) wide for doubles.

For singles, the length remains the same, but the width is reduced to 5.18 meters (17 feet), in line with Badminton World Federation (BWF) standards.

Whether you’re setting up a backyard court, coaching players, or preparing for competitive matches, using the correct badminton court dimensions makes a real difference.

In this guide, you’ll find the official court measurements, understand every court line, compare singles and doubles layouts, learn the correct net dimensions, and see the recommended space around the court.

Official Badminton Court Dimensions

The official badminton court dimensions are set by the Badminton World Federation (BWF) and are used in international tournaments, national competitions, schools, and most recreational facilities.

Standard Badminton Net Dimensions

An accurately installed badminton net is just as important because even a small difference in net height or placement can affect serves, clears, smashes, and the overall quality of play.

According to Badminton World Federation standards, the net should be 1.55 meters (5 feet 1 inch) high at the posts and 1.524 meters (5 feet) high at the center, with a slight dip in the middle.

The net measures 6.1 meters (20 feet) in length, allowing it to span the full width of the doubles court, and has a depth of 760 millimeters (2 feet 6 inches) to prevent the shuttle from passing underneath.

The supporting posts should always be positioned on the doubles sidelines, even during singles matches.

Before play begins, the net should be pulled tight so the top tape remains level, the posts should be secured firmly upright, and they should be checked to ensure they do not sag.

Badminton Court Size

Correct net and court markings are essential for fair and consistent gameplay. Along with the official Badminton World Federation net dimensions.

• Net Height: The net should be 1.524 meters (5 feet) high at the center and 1.55 meters (5 feet 1 inch) high at the posts to meet official BWF standards.
• Short Service Line: Positioned 1.98 meters (6 feet 6 inches) from the net, it marks the minimum distance a legal serve must travel.
• Long Service Line (Doubles): Located 0.76 meters (2 feet 6 inches) inside the baseline, it marks the maximum serving distance during doubles matches.
• Center Line: Runs from the short service line to the back service line, dividing the court into left and right service courts.
• Line Width: All court boundary lines are40 millimeters (1.57 inches) wide and are considered part of the playing area, meaning a shuttle landing on a line is ruled in.

Understanding Every Line on a Badminton Court

Every line on a badminton court has a specific purpose. Knowing what each one does makes it easier to understand the rules, improve positioning, and avoid unnecessary faults during a match.

1. Baselines

The baselines are the back boundary lines at each end of the court. They mark the maximum playing length for both singles and doubles.

If the shuttle lands on the baseline, it is considered in because the baseline is part of the court.

Players often aim deep shots toward the baseline to push opponents to the back of the court and create space for the next shot.

These lines are especially important during clears, lifts, and deep attacking shots. Good baseline awareness also helps players decide quickly whether to return the shuttle or let it land out.

2. Singles Sidelines

The singles sidelines are the inner side boundary lines. They create a narrower court used only during singles matches, making players cover less width but more open space on their own.

Any shuttle landing outside these lines is out during singles play, even if it would be in during doubles. These lines help keep singles rallies more balanced because one player must cover the full court alone.

Players use the singles sidelines to control angles, place shots accurately, and force opponents into difficult movement patterns.

3. Doubles Sidelines

The doubles sidelines are the outer boundary lines, making the court wider than it is for singles.

This extra width allows teammates to share court coverage while creating more attacking angles. During doubles matches, these outer sidelines determine whether the shuttle lands in or out.

The wider court makes side-to-side defense more important in doubles.

Players often use fast drives, cross-court smashes, and wide placements to stretch their opponents and open gaps between partners.

4. Short Service Line

The short service line is located close to the net and marks the minimum distance a legal serve must travel. During every serve, the shuttle must cross this line before landing in the correct service court.

If it lands before reaching the line, the serve is a fault, and the opponent wins the rally. This line is especially important for low serves, which are common in doubles and competitive play.

A good serve should pass just over the net and land beyond the short service line, making it harder for the receiver to attack.

5. Long Service Line For Doubles

Unlike singles, doubles has a separate long service line located slightly inside the baseline. On a doubles serve, the shuttle must land before this line. If it lands beyond it, the serve is out.

This shorter service area encourages faster, flatter serves that are common in doubles play.

The long service line prevents players from using very deep serves too often in doubles. It keeps the serve-and-return phase quicker, forcing both teams to react quickly and stay ready near the front and midcourt.

6. Center Line

The center line divides each side of the court into left and right service courts. It determines where players serve from and where the shuttle must land after a serve.

The serving position varies with the score, making the center line essential for proper service rotation throughout the match. This line helps players follow the correct serving rules and avoid serving into the wrong box.

It also guides positioning after the serve, especially in doubles, where partners must rotate smoothly and cover open spaces quickly.

Key Court Markings at a Glance

Understand the main badminton court markings, their measurements, and how each line affects gameplay in singles and doubles matches.

Minimum Space Required Around a Badminton Court

Players often move beyond the boundary lines while chasing deep clears, returning drop shots, or recovering after smashes.

• Baseline Clearance: Leave at least 2 meters (6.5 feet) of clear space behind each baseline. This gives players enough room to retrieve deep shots.
• Sideline Clearance: Keep a minimum of 1.5 meters (5 feet) of open space along each sideline. This allows players to move freely when defending wide shots.
• Overhead Clearance: Ensure the ceiling is high enough so the shuttle can travel without hitting lights, beams, or other overhead fixtures, especially during high clears and lifts.
• Facility Layout: Position umpire chairs, scoreboards, benches, and other equipment outside the safety clearance to keep the playing area unobstructed.
• Surrounding Surface: Use a clean, level, non-slip surface around the court to reduce the risk of slips and falls when players move beyond the boundary lines.
• Spectator Area: Keep spectators seated or standing outside the recommended clearance zone, so players have enough room to safely chase difficult shots.

Singles vs Doubles Court Dimensions

Singles matches are played on a narrower court, requiring players to cover the full length themselves. Doubles matches use the full width of the court.

Common Mistakes When Measuring a Badminton Court

Marking a badminton court may seem straightforward, but even small measurement errors can affect gameplay and player safety.

• Wrong Starting Point: Measure from the outside edge of the boundary lines, not the inside or center.
• Wrong Boundaries: Use the inner sidelines for singles and the outer sidelines for doubles.
• Ignoring Line Width: Include the 40 mm (1.57 in) line width, as the lines are part of the playing area.
• Incorrect Net Placement: Position the posts on thedoubles sidelines and set the net to the official height.
• Insufficient Clearance: Leave enough space around the court so players can move safely without hitting nearby obstacles.

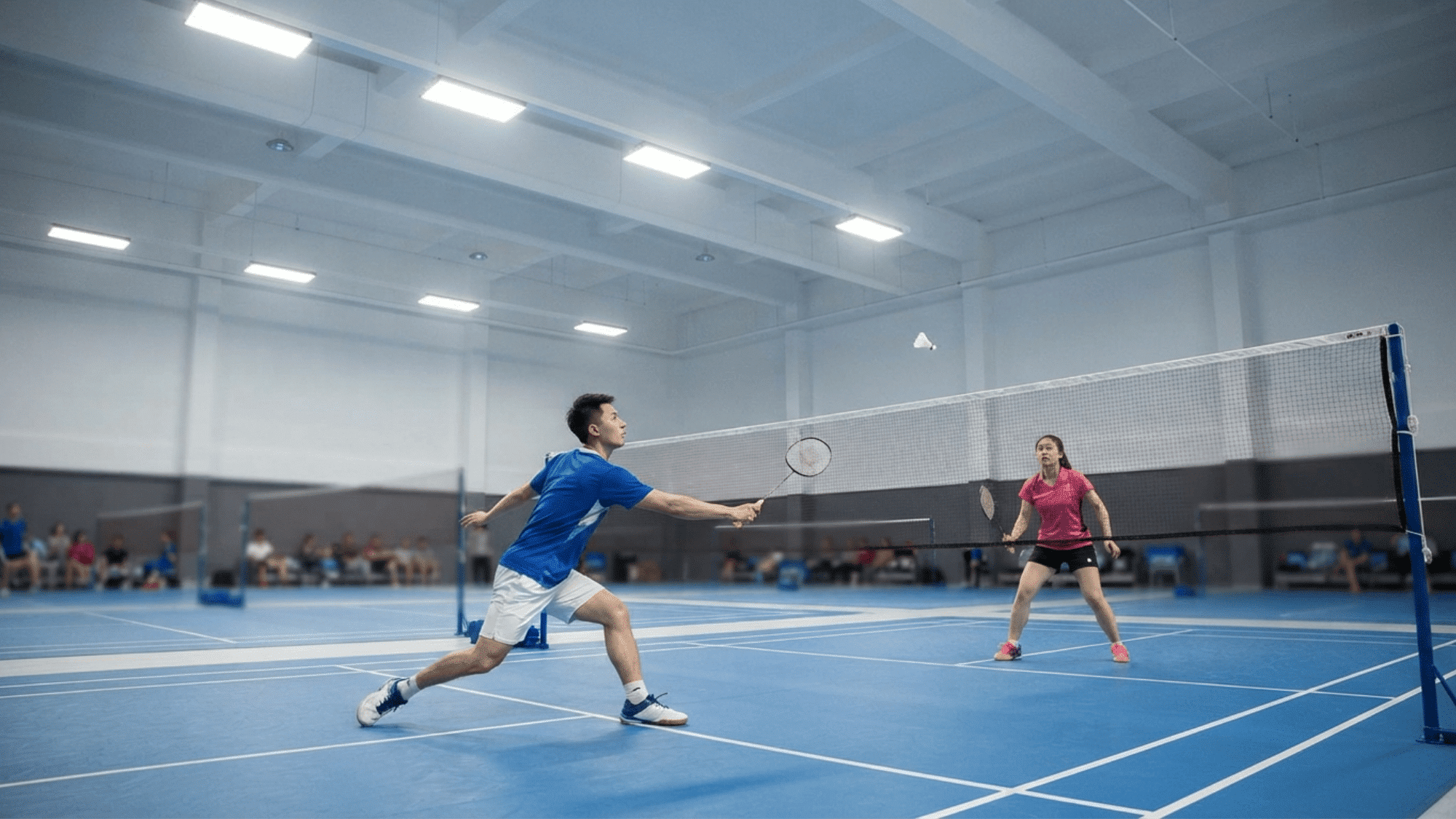

Indoor Court Height and Lighting Standards

Along with the correct badminton court dimensions, adequate ceiling height and proper lighting play a key role in creating a safe and comfortable playing environment.

A ceiling height of around 9 meters (30 feet) is generally recommended for competitive badminton to prevent the shuttle from hitting the roof or hanging fixtures.

Lighting should be bright and evenly distributed across the entire court so players can clearly track the shuttle from every position.

Light fixtures should be installed out of players’ direct line of sight, while windows, skylights, and reflective surfaces should be designed or covered to minimize glare.

Maintaining consistent brightness across the court also improves visibility, reduces eye strain, and prevents dark or overly bright areas from affecting gameplay.

Indoor vs Outdoor Badminton Court Differences

Indoor and outdoor badminton courts differ in playing conditions, surface, maintenance, and performance due to environmental factors like wind and weather.

How Court Dimensions Influence Game Strategy

The court’s layout affects movement, positioning, shot selection, and overall gameplay in both singles and doubles.

• Singles Movement: The narrower court encourages players to move opponents from the front to the back. Deep clears, drop shots, and accurate placement are effective.
• Doubles Positioning: The wider court allows partners to divide responsibilities, with one player often covering the front court while the other protects the back court.
• Shot Selection: Court dimensions influence which shots are most effective. Singles players often rely on clears and drop shots, while doubles players use faster drives, smashes, and net exchanges.
• Boundary Awareness: Knowing the exact court boundaries helps players judge whether the shuttle is in or out, reducing unforced errors and improving shot accuracy.
• Overall Performance: Understanding the official court layout builds confidence, improves court coverage, and helps players react more effectively during rallies.

Badminton Court Dimensions vs Pickleball

Although badminton and pickleball both use rectangular courts divided by a net, their dimensions differ significantly.

Final Thoughts

Getting the badminton court dimensions right is the foundation of a fair and enjoyable game, whether you’re practicing at home, coaching a team, or preparing a competition venue.

From the officialbadminton court size and court markings to net specifications, safety clearance, ceiling height, and the differences between singles and doubles, every measurement plays an important role in gameplay.

Following the official BWF standards helps create consistent playing conditions and improves the overall experience for everyone on the court.

If you’re planning to build, mark, or upgrade a badminton court, use this information as a reliable reference to ensure all measurements are accurate and the court is ready for play.

Frequently Asked Questions

What Flooring is Best for a Badminton Court?

Wooden and synthetic sports floors provide good grip, shock absorption, and player comfort, making them the preferred choice for badminton courts.

How Often Should Court Markings Be Repainted?

Court markings should be repainted whenever they become faded or difficult to see, especially in high-use facilities.

Does Court Surface Affect Badminton Play?

Yes. Different court surfaces can affect grip, player movement, comfort, and injury risk, even though the official court dimensions remain the same.
